Housing and LazaruStorm for TF536 *NEW*

Case and LazaruStorm adapter card for your Amiga 500 and Terrible Fire TF 536

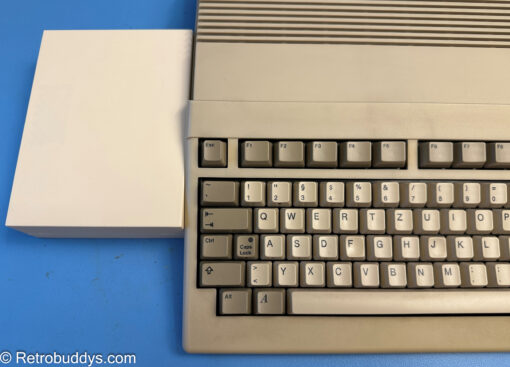

This set enables the Terrible Fire TF536 card to be inserted into the expansion port (left side) on an Amiga 500.
Even though the board was developed for the PiStorm, it works perfectly with the Terrible Fire TF536 card. However, the 68000 processor must still be removed and the JP-6 on the Rev 6 Amiga 500 mainboard must still be installed.

You simply plug the existing Terrible Fire TF536 card onto the LazaruStorm board.

With almost all Amiga500 revisions it is necessary to close the jumper JP6 by means of a solder bridge, i.e. you must open your Amiga and set a solder point.
The solder point VPAJP (2-3) is already set (BRJP should only be set in exceptional cases). We have had the best experience with this jumper combo. Each set was tested live on an Amiga 500 Rev.6a with a Terrible Fire TF536.

Scope of delivery:

• 3d print housing (6 different colors – standard = beige)
• LazaruStorm adapter
• Fastening material

Optional:

• CF adapter and cable attached to the housing and LazaruStorm adapter attached.

Note: The LazaruStorm adapter rarely (yes really sometimes it works :)) works with Amiga 500 Rev. 5 motherboards.

Note2: We can also supply the housing in all colors of our Gotek drives (silver, wood, white, …). Please inquire in advance!

Note3: The Terrible Fire TF536 card in the photos is *not* included in the scope of delivery

See photo: This is JP6, which is located directly behind the expansion port.
